Arctic Cat Clutch Shield Kit - 2018-2022 M Riot-X XF-HC 8000

Arctic Cat has found that in the unlikely event of a clutch fracture during operation, fragments of the clutch may escape the guarding and contact the operator. As a result, additional guards are to be installed. The existing clutch guards may not provide adequate protection to the operator in all riding positions.
Kit is for safety recall bulletin BS202303 (C) issued on 1/18/2024
CPSC RECALL # 24-223

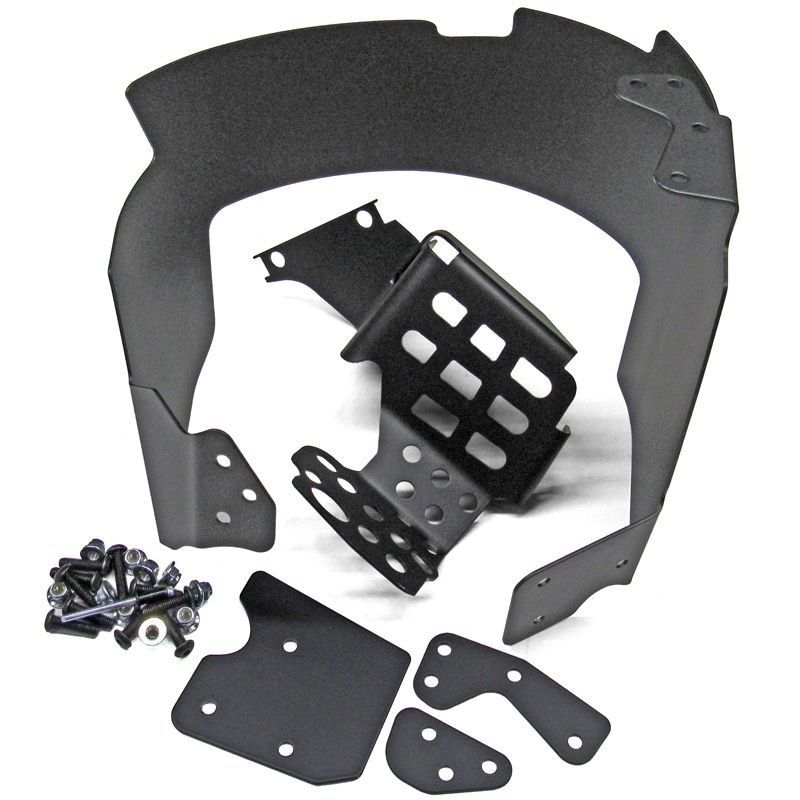

Kit Includes:

602-00020 Side Mount Plate
602-00019 Clutch Guard
602-00018 Top Mount Plate
602-00014 Bottom Mount Plate
8427-502 Lock Nut M5 (x10)
8477-520 Machine Screw M5x20mm (x10)
616-00007 Toe Stop
8060-706 Rivet
653-00002 Instructions
Template

Fits Models:

2018-2021 M 8000
2022 M 8000 Early Build
2021 Riot X 8000
2022 Riot X 8000 Early Build
2018-2019 XF 8000 High Country
The VIN must be checked to verify exact model
(Excludes XF Cross Country, XF CrossTrek, 2020-2022 Riot & 2020 Riot X)

Fits the following VIN range, including but not limited to:

2018 JT104043-JT113967 or JT800002-JT808183
2019 KT103452-KT117750 or KT800004-KT808129
2020 LT101453-LT109333
2021 MT100934-MT104208
2022 NT100407-NT101042
The VIN must be checked to verify exact fitment
